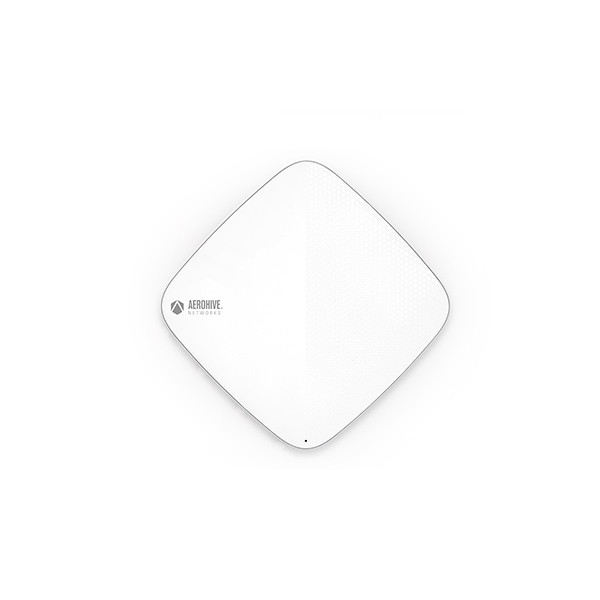

Точка доступа Aerohive AP630, WiFi 6 [AH-AP-630-AX-W]

Wireless Frequency Range

• USA: 2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz, 5.725 ~ 5.85 GHz
• Europe: 2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz
• Japan: 2.400 ~ 2.497 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz
• China: 2.400 ~ 2.483 GHz, 5.725 ~5.85 GHz

802.11 b/g/n/ax

• US/Canada: 11 (1 ~ 11)
• Major European country: 13 (1 ~ 13)
• France: 4 (10 ~ 13)
• Japan: 11b: 14 (1~13 or 14th), 11g: 13 (1 ~ 13)
• China: 13 (1 ~ 13)

802.11 a/n/ac/ax

• US/Canada: 24 non-overlapping channels (36,40,44,48,52,56,60,64;100,104,108, 112,116,120,124,128,132,136,140; 149,153,157,161,165)
• Europe: 19 non-overlapping channel (36,40,44,48,52,56,60,64;100,104,108,112, 116,120,124,128,132,136,140)
• Japan: 19 non-overlapping channels (36,40,44,48,52,56,60,64;100,104,108,112, 116,120,124,128,132,136,140)
• China: 5 non-overlapping channels (149,153,157,161,165)

802.11 Legacy a/b/g

• DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
• DSSS (Direct Sequence Spread Spectrum) with DBPSK (Differential Binary Phase Shift Keying 1 Mbps), DQPSK (Differential Quaternary Phase Shift Keying 2 Mbps), and CCK (Complementary Code Keying 5.5 & 11 Mbps), and OFDM (Orthogonal Frequency Division Multiplexing with BPSK for 6, 9 Mbps. QPSK for 12, 18 Mbps; 16QAM for 24, 36 Mbps; 64QAM for 48, 54 Mbps)

802.11n

• OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11ac

• OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)

802.11ax

• OFDMA (1024-QAM)

• Wall or ceiling mount

• 2x 10/100/1000 Gigabit Ethernet
• USB support for future IoT use cases
• Console port for CLI access
• Built in BLE for iBeacon and beacon management applications

• Dual Radio AP, 2.4 GHz and 5 GHz, simultaneous dual band
• 2.4 GHz, 802.11b/g/n/ax, 4x4
• 5 GHz, 802.11 a/n/ac/ax, 4x4
• 160 MHz, 1024-QAM supported

• 802.3at (PoE+)
• Typical: 15.4 W. Max: 17.8 W

• Operating Temperature: 0 to 40° C
• Storage Temperature: -40 to 70° C
• Humidity: 10 to 95%
• MTBF: >500,000 Hours @ 25? C (estimate)
• RoHS: -2 Compliant

• 802.3af Input: Typical 11.3 W, Max 12.4 W
• 802.3at Input: Typical 23.6 W, Max 24.9 W

• Dimensions: 205mm x 205mm x 37mm
• Weight: .53lb (240g)

• 4x Dual Band, Omni directional antenna plus 1x Bluetooth Antenna

Peak Antenna Gain:

• 2.4 GHz Omni Directional, gain 4.8 dBi
• 5 GHz Omni Directional, gain 5.2 dBi
• Bluetooth Omni Directional, gain 4.2 dBi
