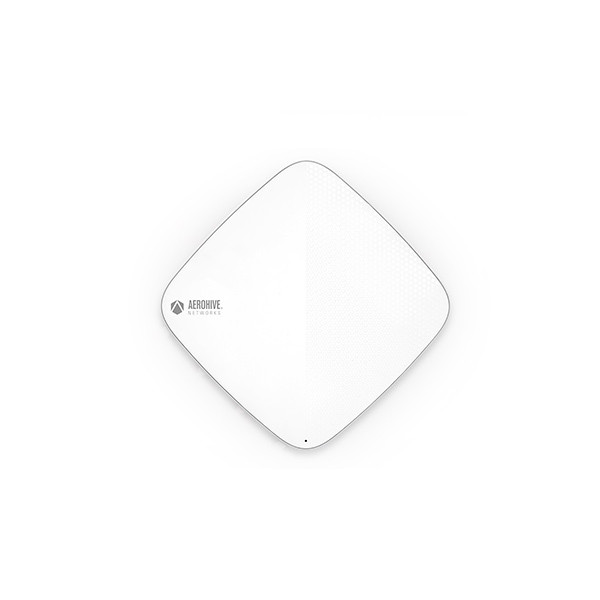

Внутренняя точка доступа Extreme Networks Aerohive AH-AP-130-AC-W, 2 радиомодуля 2x2 802.11a/b/g/n/ac, внутренние антенны.
Точки доступа Aerohive обеспечивают мощное беспроводное соединение с поддержкой ExtremeCloud IQ Connect.
| Aerohive AP130 |
| Radio Specifications—802.11a | - 5.150–5.950 GHz Operating Frequency
- Orthogonal Frequency Division Multiplexing (OFDM) Modulation
- Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
|
| Radio Specifications—802.11b | - 2.4–2.5 GHz Operating Frequency
- Direct-Sequence Spread-Spectrum (DSSS) Modulation
- Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallbackRates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
|
| Radio Specifications—802.11g | - 2.4–2.5 GHz Operating Frequency
- Orthogonal Frequency Division Multiplexing (OFDM) Modulation
- Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
|
| Radio Specifications—802.11n | - 2.4–2.5 GHz & 5.150–5.950 GHz Operating Frequency
- 802.11n Modulation
- Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
- 2x2 Multiple-In, Multiple-Out (MIMO) Radio
- HT20 and HT40 High-Throughput (HT) Support
- A-MPDU and A-MSDU Frame Aggregation
|
| Radio Specifications—802.11ac | - 5.150–5.950 GHz Operating Frequency
- 802.11ac Modulation (256-QAM)
- Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867 Mbps), NSS = 1-2.
- 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
- VHT20/VHT40/VHT80 support
|
| Antennas | 4x internal antennas ( 2x2.4GHz and 2x5GHz) |
| Interfaces | Autosensing 10/100/1000 Base-T Ethernet PoE (Power over Ethernet 802.3af) Port |
| Physical | - LxWxH 147X147X42 mm (5.79x5.79x1.65in). w/o mounting brackets
- 0.51kg (1.13 lbs) w/o brackets
|
| Environmental | - Operating: 0 to +40°C, Storage: -40 to +70°C
- Humidity: 95%
|
| Environmental Compliance | UL2043 |
| Power Specifications | IEEE 802.3af PoE Power |
| Power Options | - 802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6)
- 802.3af Power over Ethernet injector
|
| Mounting | - Desktop
- Wall Mount included as part of AP
- Built-in slot for Kensington type locks
- Ceiling Tile flush 15/16" and Wall Mount locking accessory included with AP
|
| Accessories Sold Separately | - Ceiling Tile Recessed 15/16", 3/8", 9/16" sold as an accessory
- Ceiling Tile flush 3/8", 9/16" sold as an accessory
- Suspend Mount sold as an accessory
- Plenum Mount sold as an accessory
|
