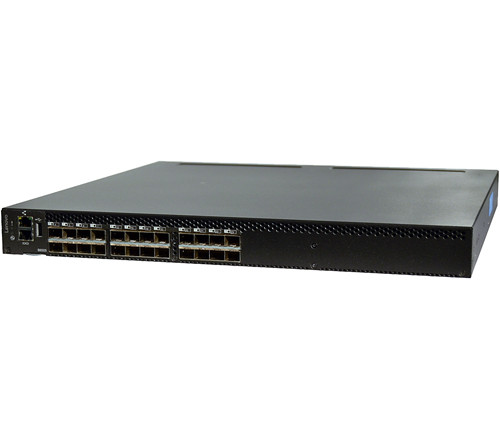

Коммутатор Lenovo B6505 Fibre Channel [3873AR4]

Коммутатор Lenovo B6505 Fibre Channel [3873AR4]

5 490 180 ₸

  • В наличии
  • Код: ct111283
Коммутатор Lenovo B6505 Fibre Channel [3873AR4]
Коммутатор Lenovo B6505 Fibre Channel [3873AR4]В наличии
5 490 180 ₸
Купить
+7 (747) 095-79-79
Отдел продаж
  • +7 (771) 557-53-51
  • +7 (771) 504-54-03
Купить
+7 (747) 095-79-79
Отдел продаж
  • +7 (771) 557-53-51
  • +7 (771) 504-54-03
Законом не предусмотрен возврат и обмен данного товара надлежащего качества
Характеристики
Основные
Производитель Lenovo

Оптоволоконный коммутатор Lenovo B6505, 12 портов с оптоволоконными трансиверами 8Gb SWL SFPs, с возможностью масштабирования до 24. Скорость каналов: 2, 4, 8 и 16 Гбит/с с автоопределением. Комплектация: 1 блок питания с функцией горячей замены и встроенными вентиляторами, комплект монтажа в стойку.

Характеристики
Component Specification
Form factor Standalone or 1U rack mount
Ports
  • B6505: Up to 24 SFP/SFP+ ports. 12 ports licensed by default; 12x 8 Gb or 16 Gb FC SWL SFP+ modules included with the switch; optional 12-port activation bundle (license pack + 8 Gb or 16 Gb FC SWL SFP+ modules).
  • B6510: Up to 48 SFP/SFP+ ports. 24 ports licensed by default; up to two optional 12-port activation bundles (license pack + 8 Gb or 16 Gb FC SWL SFP+ modules).
Media types

8 Gb FC and 16 Gb SFP+ transceivers: short-wave (SW), long-wave (LW), extended long-wave (ELW).

10 Gb FC SFP+ transceivers (Lenovo B6510 only; require Integrated 10G FC license): short-wave (SW), long-wave (LW).
Port speeds

2/4/8 Gbps auto-sensing, full-duplex (8 Gb FC SFP+ transceivers)

4/8/10 Gbps auto-sensing, full-duplex (10 Gb FC SFP+ transceivers; Lenovo B6510 only)

4/8/16 Gbps auto-sensing, full-duplex (16 Gb FC SFP+ transceivers)
FC port types

Full Fabric mode: FL_Port, F_Port, M_Port (Mirror Port), E_Port, D_Port (Diagnostic Port).

Access Gateway mode: F_Port and NPIV-enabled N_Port.
Data traffic types Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only).
Classes of service Class 2, Class 3, Class F (inter-switch frames).
Standard software Full Fabric mode, Access Gateway, Advanced Zoning, Adaptive Networking, Advanced Diagnostic Tools, Virtual Fabrics (Lenovo B6510 only), In-flight Compression (Lenovo B6510 only), In-flight Encryption (Lenovo B6510 only).
Optional software ISL Trunking, Fabric Vision, Extended Fabric, Integrated Routing (Lenovo B6510 only), Integrated 10G FC (Lenovo B6510 only).
Performance Non-blocking architecture with wire-speed forwarding of traffic:
  • 2.125 Gbit/sec line speed, full duplex
  • 4.25 Gbit/sec line speed, full duplex
  • 8.5 Gbit/sec line speed, full duplex
  • 10.51875 Gbit/sec line speed, full duplex (Lenovo B6510 only)
  • 14.025 Gbit/sec line speed, full duplex
  • Aggregated throughput
    • B6505: 384 Gbps
    • B6510: 768 Gbps
  • Up to 0.7 microseconds local switching latency
    • Forward error correction (FEC): Adds up to 0.4 microseconds between E_Ports
    • Encryption/compression: Adds up to 5.5 microseconds per node
Scalability
  • Maximum number of switches in the fabric: 239
  • Maximum frame size: 2,112-byte payload
  • Maximum number of frame buffers per switch: 8,192
  • Maximum number of ports per ISL trunk: 8 (Requires an optional license)
Cooling Two fans built into each power supply; 2+2 cooling redundancy with two power supplies. Non-port to port side airflow.
Power supply Up to two redundant hot-swap 150 W AC (100 - 240 V) power supplies (IEC 320-C14 connector).
Hot-swap parts SFP/SFP+ transceivers, power supplies with fans.
Management ports One 10/100 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port (for additional firmware/log/configuration files storage).
Management interfaces EZSwitch Setup; Web-based GUI (Web Tools); CLI; SMI-S; SNMP. Optional Brocade Network Advisor (available from Brocade).
Security features Secure Socket Layer (SSL); Secure Shell (SSH); Secure Copy (SCP); Secure FTP (SFTP); user level security, Role-based Access Control (RBAC); LDAP, RADIUS, and TACACS+ authentication; access control lists (ACLs); IP security (IPsec)
Hardware warranty One-year customer-replaceable unit, parts-only warranty with 9x5 next business day terms. Optional warranty service upgrades are available through Lenovo: on-site coverage, 24x7 coverage, 2-hour or 4-hour response time, 1-year or 2-year warranty extensions, Remote Technical Support.
Software maintenance Three-year software support and subscription license is included. Optional 1-year and 2-year software support extension licenses are available through Lenovo.
Dimensions Height: 43 mm (1.7 in.); width: 438 mm (17.2 in.); depth: 443 mm (17.4 in.)
Weight
  • B6505 (with one power supply, without SFPs): 7.8 kg (17.3 lb)
  • B6510 (with two power supplies, without SFPs): 9.2 kg (20.2 lb)
Информация для заказа
  • Цена: 5 490 180 ₸
