![Коммутатор ExtremeSwitching VSP 8608 с БП пер. тока и модулями [EC8602002-E6]](https://images.satu.kz/155817165_kommutator-extremeswitching-vsp.jpg)

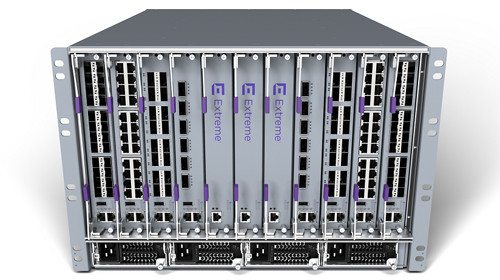

Коммутатор ExtremeSwitching VSP 8608 с БП пер. тока и модулями [EC8602002-E6]
Цену уточняйте
Минимальная сумма заказа на сайте — 50000 тг
- В наличии
- Код: ct122342
![Коммутатор ExtremeSwitching VSP 8608 с БП пер. тока и модулями [EC8602002-E6]](https://images.satu.kz/155817165_w640_h640_kommutator-extremeswitching-vsp.jpg)
Коммутатор ExtremeSwitching VSP 8608 с БП пер. тока и модулями [EC8602002-E6]В наличии
Цену уточняйте
Законом не предусмотрен возврат и обмен данного товара надлежащего качества
Характеристики
| Основные | |
|---|---|
| Производитель | Extreme networks |
Комплект Avaya VSP8608 Bundle. Включает: 1 x шасси VSP 8608 на 8 слотов IOC Module, 5 x вентиляторов охлаждения, 1 x монтажный комплект, 3 x 8600SF Switch Fabric Modules, 4 x блока питания 3,000W 100-240V AC
Extreme VSP 8600 — это модульные 100-гигабитные коммутаторы уровня ядра/агрегирования. Они обладают компактным корпусом 7 RU с большим количеством портов и обеспечивают пропускную способность более 21 Тбит/с. Шасси поддерживает технологии Extreme Fabric Connect и протоколы MACsec и IPv6. Предоставляет возможность организации многоскоростных Ethernet-каналов 10/25/40/100 Гбит/с.
3 варианта на выбор: 192 10-гигабитных Ethernet-портов, 128 40-гигабитных Ethernet-портов или 48 100-гигабитных Ethernet-портов.
Характеристики
| General | • Physical Connectivity: - up to 48 ports of 100GBASE-QSFP28 - up to 128 ports of 40GBASE-QSFP+ - up to 192 ports of 10GBASE-SFP+ or 10GBASE-T • Switch Fabric Capacity: 7.2Tbps per Switch Fabric Module, up to 21.6Tbps • Switching Capacity per IOC Module: up to 1.44Tbps • Channelization of 100 Gigabit ports - 1x40Gbps, 4x25Gbps4, 4x10Gbps4 • Channelization of 40 Gigabit ports - 4x10Gbp • Frame forwarding rate: up to 952.32Mpps per Slot • Nominal Latency: <4.5?sec • Jumbo Frame support: up to 9,600 Bytes • (802.1Q Tagged) • MACsec Link Layer Encryption - 10 Gigabit (8624XS SFP+ only) - 100 Gigabit |
| Physical Attributes | • Up to 4 high-availability AC or DC Power Supplies • High-availability Cooling, Front-to-Back airflow • Height of 7RU • Weight of ~55kg/120lbs (Unloaded) |
| Layer 2 | • MAC Address: 256,000 • Port-based VLANs: 4,059 • MSTP Instances: 64 • MLT/LACP Groups: up to 192 • MLT Links per Group: 8 • Extreme Networks VLACP Instances: up to 128 • Extreme Networks SLPP Instances: 500 |
| Layer 3 | IPv4 Routing Services • ARP Entries: 64,000 • Static ARP Entries: 2000 per VRF, 10,000 per System • IP Interfaces: 4,059 • CLIP Interfaces: 64 • IP Routes: up to 252,000 • IP Static Routes: 2,000 per VRF, 10,000 per System • RIP Interfaces: 200 • OSPF Interfaces: 500 Active/2,000 Passive • OSPF Areas: 12 per VRF, 80 per System • BGP Peers: 256 • BGP RIB Routes: 1,500,000 (Control Plane only) • ECMP Unique Groups: 1,000 • ECMP Paths per Group: 8 • NLB Interfaces: 128 per VLAN, 256 per System • VRRP Interfaces: 512 • RSMLT Interfaces: up to 4,000 over 512 SMLT • IPv4 UDP Forwarding Entries: 1,024 • IPv4 DHCP Relay Forwarding Entries: 1,024 • IP Route Policies: 2,000 per VRF and 16,000 per System • VRF Instances: 512 |
| Multicast | • IGMP Interfaces: 4,000 • PIM Interfaces: 512 Active/3,000 Passive • Multicast-over-Fabric Connect enabled VLANs: up to 2,0004 • IGMP Senders/Receivers: 6,000 Unique S,G,V • IP Multicast Groups per BCB: up to 50,000 • PIM Multicast Routes: 6,000 Unique S,G,V • Static Multicast Routes: up to 4,000 • PIM-SSM Static Channels: up to 4,000 |
| Fabric Connect | • 802.1aq/RFC 6329 Shortest Path Bridging with Extreme Networks extensions • MAC Address: 256,000 • NNI Interfaces/Adjacencies: up to 192 • Equal Cost Trees: 2 • BCB/BEB Nodes per Region: 2,000 • L2 Virtual Service Networks: 4,000 • L3 Virtual Service Networks: up to 512 • IP Shortcut Routes: up to 16,000 |
| QoS and Filtering | • Total ACEs per IOC: 4,000 Ingress and 2,000 Egress • Total ACLs: 2,000 Ingress and 1,000 EgresOperations and Management • EDM On/Off-Box • SNMP v1/2/3 • ACLI • RADIUS, Community-based Users • Terminal Access Controller Access-Control System, TACACS+ • Key Health Indicator (KHI) • Logging (log to file and syslog) • RMON • Mirroring (port- and flow-based) • Telnet Server/Client • Trivial File Transfer Protocol (TFTP)Server/Client • File Transfer Protocol (FTP) Server/Client • Secure Shell (SSH) v1 and v2 Server/Client • Secure Copy (SCP) • Remote Shell (RSH) Server/Client • Remote Login (Rlogin) Server/Client • Domain Name Service (DNS) Client • Network Time Protocol (NTP) • SoNMP (Extreme Networks Topology Discovery Protocol) • Extreme Networks Virtual Link Aggregation Control Protocol (VLACP) • Extreme Networks Simple Loop Prevention Protocol (SLPP) • IEEE 802.1ag Connectivity Fault Management - L2 Ping - TraceRoute |
| Standards Compliance | |
|---|---|
| IEEE 802.1 Bridging (Networking) and Network Management | • 802.1D MAC Bridges (a.k.a. Spanning Tree Protocol) • 802.1p Traffic Class Expediting and Dynamic Multicast Filtering • 802.1t 802.1D Maintenance • 802.1w Rapid Reconfiguration of Spanning Tree (RSTP) • 802.1Q Virtual Local Area Networking (VLAN) • 802.1Qbp Equal-Cost Multi-Path (Shortest Path Bridging) • 802.1Qcj Automatic Attachment to Provider Backbone Bridging (PBB) Services (Partial Support) • 802.1s Multiple Spanning Trees (MSTP) • 802.1v VLAN Classification by Protocol and Port • 802.1ag Connectivity Fault Management • 802.1ah Provider Backbone Bridges • 802.1aq Shortest Path Bridging (SPB) MAC- in-MAC • 802.1X Port-based Network Access Control4 • 802.1AB-2005 Station and Media Access Control Connectivity Discovery; aka LLDP (partial support) • 802.1AE Media Access Control Security |
| 802.3 Ethernet | • 802.3-1983 CSMA/CD Ethernet (ISO/IEC 8802-3) • 802.3i-1990 10Mb/s Operation, 10BASE-T Copper • 802.3u-1995 100Mb/s Operation, 100BASE-T Copper, with Auto-Negotiation • 802.3x-1997 Full Duplex Operation (partial support) • 802.3z-1998 1000Mb/s Operation, implemented as 1000BASE-X • 802.3ab-1999 1000Mb/s Operation, 1000BASE-T Copper • 802.3ae-2002 10Gb/s Operation, implemented as 10GBASE-SFP+ • 802.3an-2006 10Gb/s Operation, 10GBASE-T Copper • 802.3ba-2010 40Gb/s and 100Gb/s • 802.3bm-2015 40Gb/s and 100Gb/s Operation, implemented as 40GBASE-QSFP+ and 100GBASE-QSFP28 |
Информация для заказа
- Цена: Цену уточняйте
