![Точка доступа Extreme WiNG [TW-0511-60010-WR]](https://images.satu.kz/155815974_tochka-dostupa-extreme.jpg)
Точка доступа Extreme WiNG [TW-0511-60010-WR]
169 080 ₸
- В наличии
- Код: ct98130
![Точка доступа Extreme WiNG [TW-0511-60010-WR]](https://images.satu.kz/155815974_w640_h640_tochka-dostupa-extreme.jpg)
Точка доступа Extreme WiNG [TW-0511-60010-WR]В наличии
169 080 ₸
Законом не предусмотрен возврат и обмен данного товара надлежащего качества
Характеристики
| Основные атрибуты | |
|---|---|
| Производитель | Extreme networks |

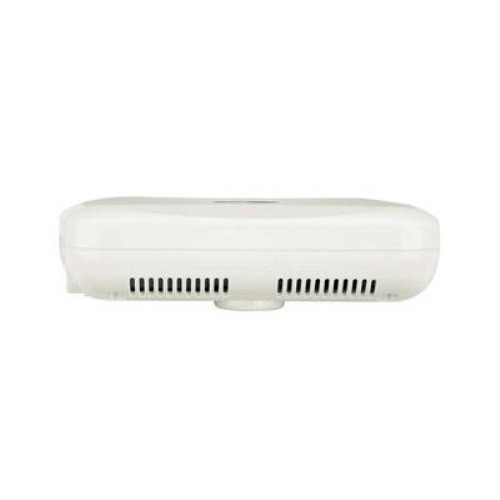

Настенная точка доступа Extreme WiNG TW-0511 (ex Zebra), 802.11 ABGN. (ранее Zebra Technologies TW-0511)
Характеристики
| Wireless Interface: | Single radio; 802.11a/b/g/n; 2.4Ghz or 5.2Ghz |
| LAN Ethernet port: | 2 x IEEE 802.3 10/100Mb auto-sensing via 8-pin header |
| Uplink UTP: | 1 x RJ11 UTP, VDSL2 |
| Pass through: | Filtered RJ11 port |
| Medium: | DSSS, OFDM, MIM O |
| Standards: | 802.11a, 802.11b, 802.11g, 802.11n draft 2.0 802.11i, 802.11-2007 |
| Data Rates: | 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6,9,12,18,24,36,48, 54Mbps 802.11a: 6,9,12,18,24,36,48, 54Mbps 802.11n: MCS 0-15 up to 300Mbps |
| Operating Frequencies: | 2.4GHz: 2400 -2483.5MHz 5.2GHz: 5150 - 5250MHz; 5725 - 5850MHz Actual operating frequencies depend on national regulatory limits |
| Transmit Power settings: | 1dBm to 18dBm, in 1dB increments; Actual Tx power dependant on national regulatory limits |
| Antenna Configuration: | Two internal omni-directional, 1x2 or 2x2 MIM O operation 3dBi peak in 2.4 Ghz; 4dBi peak gain in 5.2 Ghz |
| VLANs: | 802.1 Q tagged VLANs, access or trunk |
| Management: | Access: via TS-524 Switch for normal operation, HTTP access for site survey standalone operation |
| GENERAL SPECIFICATIONS | |
| Power: | TS-524: 100 – 240V AC, 50/60Hz; 375W max, 250W typical TW-511: Line powered or DC power: 12VDC, 6W TW-510: Line powered or DC power: 12VDC, 4W |
| Physical: | TS-524: 17.25 in. x16.25 in. x1.75 in. (43.8 cm x 41.3 cm x 4.4 cm) 11.5 lbs (5.2 Kg) TW-5xx: 4.9 in. x3.6 in. x 1.2 in. (124mm x 92mm x 32mm) 12oz (0.34 Kg) |
| Environment: | 0 - 40 degrees Celsius ambient temperature, 5% to 90% NC |
| Mounting: | TS-524: EI A-19 rack mount ears provided. 90° or 180° rotation mounting options TW-5xx: Wall mount bracket and RJ11 cable |
| TW-5xx Compliance: | FCC 15.247, 15.407 / EN300 328, EN 301 893 UL EU EN 60950-1 2nd Ed., ANZ C-Tick FCC Part 15 Subpart A, EN 55022: 2006 + A1: 2007, ICES – 003 (Class A) EN 55024: 1998 + A1: 2001 + A2: 2003 EU RoHS Directive 2002/95/EC CE, IC, FCC |
| LINE POWER MAXIMUM RANGE | |
| Distance | Wallplate |
| 500 ft (150m) | TW-510 or TW-511 |
| 1000 ft (300m) | TW-510 or TW-511 |
| 1500 ft (450m) | TW-510 or TW-511 |
| 2000 ft (600m) | TW-510 |
| > 2000 ft (600m) | None (use local power supply) |
| LINE RATE PERFORMANCE | |
| Distance | Wallplate |
| 500 ft (150m) | 105Mbps down /50Mbps up |
| 1000 ft (300m) | 105Mbps down /50Mbps up |
| 1500 ft (450m) | 105Mbps down /50Mbps up |
| 2000 ft (600m) | 103Mbps down /40Mbps up |
| 3000 ft (900m) | 60Mbps down /18Mbps up |
| 4000 ft (1200m) | 45Mbps down /5Mbps up |
Информация для заказа
- Цена: 169 080 ₸
