![Точка доступа FortiAP U423EV [FAP-U423EV-E]](https://images.satu.kz/155808486_tochka-dostupa-fortiap.jpg)

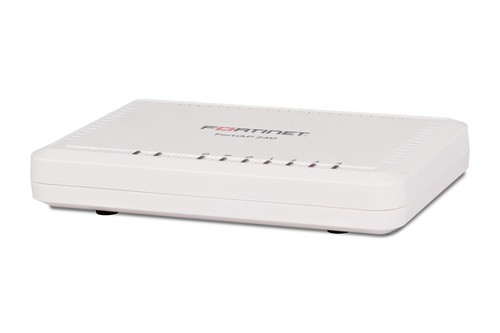

Точка доступа FortiAP U423EV [FAP-U423EV-E]
581 880 ₸
- В наличии
- Код: ct96688
![Точка доступа FortiAP U423EV [FAP-U423EV-E]](https://images.satu.kz/155808486_w640_h640_tochka-dostupa-fortiap.jpg)
Точка доступа FortiAP U423EV [FAP-U423EV-E]В наличии
581 880 ₸
Законом не предусмотрен возврат и обмен данного товара надлежащего качества
Характеристики
| Основные | |
|---|---|
| Производитель | Fortinet |
2X GbE RJ45, 4x4, 802.11 a/b/g/n/ac, dual concurrent dual band (2.4GHz/5GHz), BT/BLE, external antenna, PoE 802.3 at suppot Region Code E.
FortiAP Indoor — высокопроизводительные точки доступа для установки в помещениях. При работе в связке со встроенным беспроводным контроллером FortiGate может быть достигнута пропускная способность до 600 Mbps. В FortiAP Indoor использованы беспроводные технологии последнего поколения, позволяющее извлекать максимум преимуществ стандарта 802.11n.
Техническое описание FortiAP Indoor Series Характеристики
| FortiAP U423EV | |
| Hardware Type | Indoor Universal AP |
| Number of Radios | 2 |
| Number of Antennas | 8 RP-SMA External |
| Peak Antenna Gain | 3 dBi for 2.4 GHz, 3 dBi for 5 GHz |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.851 |
| Frequency of Radio 1 | 2.4 GHz b/g/n 20/40 MHz (256 QAM) |
| Frequency of Radio 2 | 5 GHz a/n/ac 20/40/80/160 MHz (256 QAM) |
| Maximum Data Rate | Radio 1: up to 800 Mbps Radio 2: up to 3.46 Gbps |
| Radio Chains / Streams | SU-MIMO — 4x4 / Up to 4 streams MU-MIMO — 4x4 / Up to 3 streams |
| Bluetooth Low Energy (BT/BLE) Radio | 4 dBm Transmit Power (class 2) -94dBm Receive Sensitivity |
| Ethernet Ports | 2x GE RJ45 |
| USB Port | 1x Type A |
| Serial Console Port | 1 RS-232 x RJ45 |
| Power over Ethernet (PoE) | Dual redundant PoE power ports with support for IEEE 802.3at (25.5 W) |
| Simultaneous SSIDs | 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/ EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power | 19 dBm (80 mW) |
| Physical Security | Kensington Lock |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af, 802.11ac, 802.3at, 802.3az |
| FortiPresence Capable | Yes |
| Wireless Mesh Capable | Yes |
| Modes of Operation | MC with SD 8.2, FWLM, FortiGate or FortiCloud management |
| SSID Types Supported | Local-Bridge, Tunnel & Mesh (when managed by controller) |
| FortiDeploy and FortiCloud Key | Yes |
| Concurrent Clients Per Radio (Maximum / Recommended) | 512 / 128 |
| LED Off Mode | Yes |
| 802.11ac Wave2 MU-MIMO | Yes |
| Transmit Beam Forming (TxBF) | Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes |
| MIMO Power Save | Yes |
| Short Guard Interval | Yes |
| WME Multimedia Extensions | Yes (4 priority queues for voice, video, data and background traffic) |
| Frequencies Scanned | 2.4 and 5 GHz |
| Background Scan with Client Access on 2.4 and 5 GHz | Yes |
| Full-time Scan as Dedicated Monitor | Yes |
| Full-time Scan with Client Access on 5G GHz | No |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes — Dedicated chipset |
| Length x Width x Height (mm) | 215 x 215 x 56 |
| Weight | 1.53 kg |
| Mounting Options | Ceiling, T-Rail and Wall Ceiling |
| Included Accessories | Ceiling, T-Rail and wall mount kit and 8 dipole antennas (AC power adapter sold separately) |
| Power Supply | Adapter input: 100-240V, 50/60 Hz, 0.9A Max output: 12V DC, 3A |
| Power Consumption (Average / Maximum) | 24.26 W / 24.58 W |
| Humidity | 5–90% non condensing |
| Operating Temperature | -20–50C |
| Storage Temperature | -40–70C |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | Yes |
| Mean Time Between Failures | >30 Years |
| WiFi Alliance Certified | Yes |
| Limited Lifetime Warranty | Yes |
Информация для заказа
- Цена: 581 880 ₸
