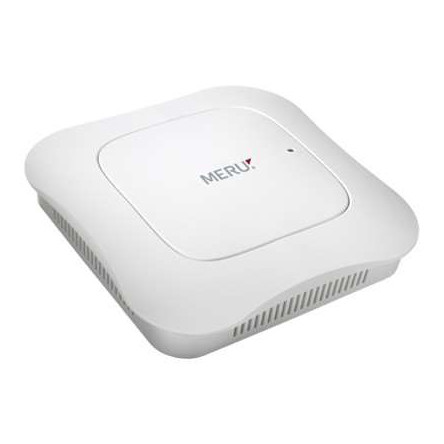

Точка доступа Fortinet FortiAP [AP822I]
244 980 ₸
- В наличии
- Код: ct114427
![Точка доступа Fortinet FortiAP [AP822I]](https://images.satu.kz/155808479_w640_h640_tochka-dostupa-fortinet.jpg)
Точка доступа Fortinet FortiAP [AP822I]В наличии
244 980 ₸
Законом не предусмотрен возврат и обмен данного товара надлежащего качества
Характеристики
| Основные атрибуты | |
|---|---|
| Производитель | Fortinet |
Dual-radio 2x2 2-stream 802.11a/b/g/n/ac Access Point with integrated antennas. Can be mounted horizontally (below the ceiling) and vertically (on a wall). Includes mounting bracket and screws. Additional Mounting brackets optional.
FortiAP Indoor — высокопроизводительные точки доступа для установки в помещениях. При работе в связке со встроенным беспроводным контроллером FortiGate может быть достигнута пропускная способность до 600 Mbps. В FortiAP Indoor использованы беспроводные технологии последнего поколения, позволяющее извлекать максимум преимуществ стандарта 802.11n.
Техническое описание FortiAP Indoor Series Характеристики
| AP822i | |
| Operating Modes |
|
| Security |
|
| Management |
|
| Wireless Specifications | |
| Radio Technologies | Dual-radio, single-band IEEE Std 802.11b/g/n for 2.4 GHz band and IEEE Std 802.11a/n/ac for 5.x GHz band access point with four internal omnidirectional antennas |
| Supported Radio Technologies | Dual-radio access point for indoor environment 2x2:2SS (two spatial streams) Supported 2.4 GHz and 5.x GHz for single-band, dual-radio operation; data rate up to 1167 Mbps Supported transmit beam-forming (TxBF) IEEE Std 802.11n/a/g/ac with Orthogonal Frequency Division Multiplexing (OFDM) IEEE Std 802.11b with 22 MHz channels and Direct Sequence Spread Spectrum (DSSS) IEEE Std 802.11ac WAVE1 with 20/40/80 MHz (HT20/HT40/VHT80) channel width IEEE Std 802.11n with 40 MHz (HT40) channel width IEEE Std 802.11a/g with 20 MHz channel |
| Modulation | IEEE Std 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM IEEE Std 802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM IEEE Std 802.11b: BPSK, QPSK, CCK |
| Supported Frequency Bands | 2.400–2.4835 GHz (ISM) 5.150–5.250 GHz (UNII-1) 5.250–5.350 GHz (UNII-2, DFS) 5.470–5.725 GHz (UNII-2 Extended, DFS) 5.725–5.825 GHz (UNII-3) Country-specific restrictions apply; adjusted by controller upon approval |
| Supported Data Rate (Mbps) | IEEE Std 802.11ac two streams: 13.0–866.7 Mbps (MCS0-HT20 @ 800 nS to MCS9-VHT80 @ 400 nS) IEEE Std 802.11ac per stream: 6.5–433.3 Mbps (MCS0-HT20 @ 800 nS to MCS9-VHT80 @ 400 nS) IEEE Std 802.11n Two streams: 13.0–300.0 Mbps (MCS8-HT20@800nS to MCS15-HT40@400nS) IEEE Std 802.11n per stream: 6.5–150.0 Mbps (MCS0-HT20 @ 800nS to MCS7-HT40@400nS) IEEE Std 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps IEEE Std 802.11b: 1, 2, 5.5, and 11 Mbps |
| Configurable Transmission Power | Transmission power configurable in 1.0 dBm increments |
| Physical Specifications | AP822i |
| Antenna | Four integrated and external single-band omnidirectional antennas for 2x2 MIMO with maximum antenna gain of 3.3 dBi in 2.4 GHz and 6 dBi in 5 GHz. Internal antennas on the 822i are optimized for vertical wall-mounted orientation of the AP |
| Power | Operated at IEEE Std 802.3af power, powered by IEEE Std 802.3af or 802.3 at PoE (Power over Ethernet) injector or switch 12V external power adapter (sold separately) |
| Interfaces | Networks: One 10/100/1000 BASE-T Ethernet RJ45 uplink (G1), one 10/100/1000 BASE-T Ethernet RJ45 (G2) (disabled when powered with 802.3af), auto-sensing link speed and MDI/MDX Four RPSMA RF connectors (For AP822e, external antenna SKU) One RJ45 port (G1) support IEEE Std 802.3af or 802.3 at PoE One USB 2.0 port (Type-A) (disabled when powered with 802.3af) One console port One reset button One Kensington security slot |
| Indicators | One tri-color LED for AP status Additional LEDs for Ethernet activity over two RJ45 ports (G1 & G2) |
| Mounting | Wall mount: junction box wall mount bracket included Three mounting kits included with access point: 650-00232, 15/16” T-bar & wall-mount combo adapter 650-00233, 9/16” T-bar adapter Flat-surface wall-mount bracket (used with 650-00232) 840-00126, Wall Mount Hardware Kit (including to 669-00004 space, 665-00085 M3x10 screws, & 665-00102-M3x30 screws) |
| Dimensions | (with mounting bracket): 7.1 x 7.1 x 2.7 inches (18.0 x 18.0 x 6.8 cm) |
| Weight | 2.3 lbs (1.1 kg) |
| Environmental | Operating temperature: 32–122°F (0–50°C) Operating humidity: 5–95% non-condensing Storage temperature: -40–185°F (-40–70°C) ambient Storage humidity: 5–95% non-condensing |
| Regulatory Approval and Certifications | |
| Regulatory Approval | FCC (United States of America) CE Mark (European Community) Industry Canada (Canada) TELEC (Japan) Safety Approval (worldwide) For more country-specific regulatory approval, please contact your Fortinet representative |
| Certifications | WiFi CERTIFIED™ EU RoHS CB Report |
| Warranty | Limited lifetime warranty |
Информация для заказа
- Цена: 244 980 ₸
