Характеристики
Основные | |
---|---|
Производитель | Fortinet |

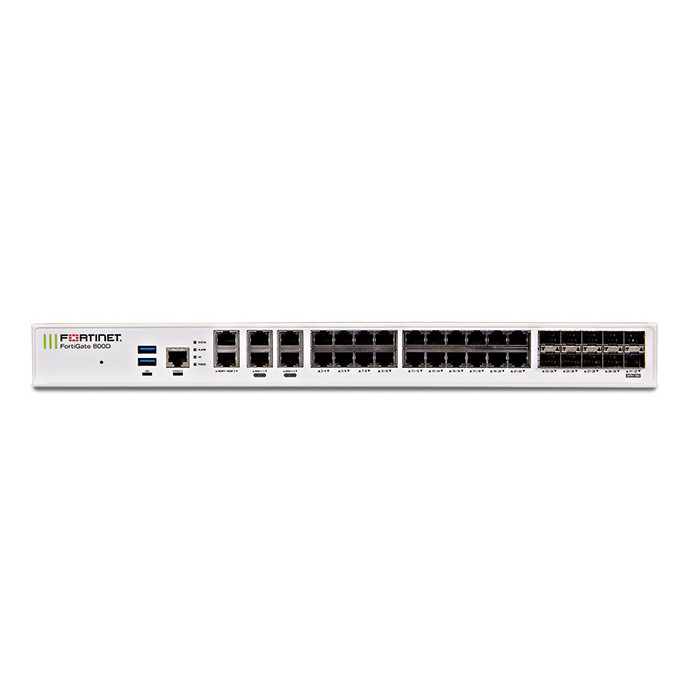

Комплект безопасности: межсетевой экран FortiGate-800D + 5 лет подписки 24x7 FortiCare и FortiGuard Enterprise Protection. Старый артикул: FG-800D-BDL-980-60.
Комплекты межсетевых экранов FortiGate для среднего бизнеса (FG 100-900) с пакетом безопасности Enterprise Bundle и подпиской Forticare (на выбор 8/5 или 24/7) на один, три или пять лет. Пакет безопасности Enterprise Bundle позволяет расширить функции безопасности межсетевого экрана FortiGate. Что входит в состав Enterprise Bundle, читайте в описании категории по ссылке.
Характеристики
Model | FORTIGATE 600D |
Interfaces and Modules | |
Hardware Accelerated 10 GE SFP+ Slots | 2 |
Hardware Accelerated GE SFP Slots | 8 |
Hardware Accelerated GE RJ45 Ports | 20 |
GE RJ45 Management | 4 |
USB Ports (Client / Server) | 1 / 2 |
Console Port | 1 |
Onboard Storage | 240 GB |
Included Transceivers | 2x SFP (SX 1 GE) |
System Performance and Capacity | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 22 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 36 / 36 / 22 Gbps |
Firewall Latency (64 byte, UDP) | 3 ?s |
Firewall Throughput (Packet per Second) | 33 Mpps |
Concurrent Sessions (TCP) | 5 Million |
New Sessions/Second (TCP) | 280,000 |
Firewall Policies | 10,000 |
IPsec VPN Throughput (512 byte) | 20 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
Client-to-Gateway IPsec VPN Tunnels | 10,000 |
SSL-VPN Throughput | 2.2 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum) | 5,000 |
IPS Throughput (HTTP / Enterprise Mix) | 8 / 4.2 Gbps |
SSL Inspection Throughput | 4 Gbps |
Application Control Throughput | 6 Gbps |
NGFW Throughput | 3.5 Gbps |
Threat Protection Throughput | 2.4 Gbps |
CAPWAP Throughput | 5.5 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
Maximum Number of FortiTokens | 1,000 |
Maximum Number of Registered Endpoints | 2,000 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power | |
Height x Width x Length (mm) | 45 x 432 x 416 |
Weight | 8.6 kg |
Form Factor | 1 RU |
AC Power Supply | 100–240V AC, 60–50 Hz |
Power Consumption (Average / Maximum) | 128 W / 187 W |
Current (Maximum) | 110V/7A, 220V/3.5A |
Heat Dissipation | 636 BTU/h |
Redundant Power Supplies | (Hot Swappable) optional |
Operating Environment and Certifications | |
Operating Temperature | 0–40°C |
Storage Temperature | -35–70°C |
Humidity | 20–90% non-condensing |
Operating Altitude | Up to 7,400 ft (2,250 m) |
Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
Информация для заказа
- Цена: 44 365 260 ₸
