Характеристики
Основные | |
---|---|
Производитель | Fortinet |

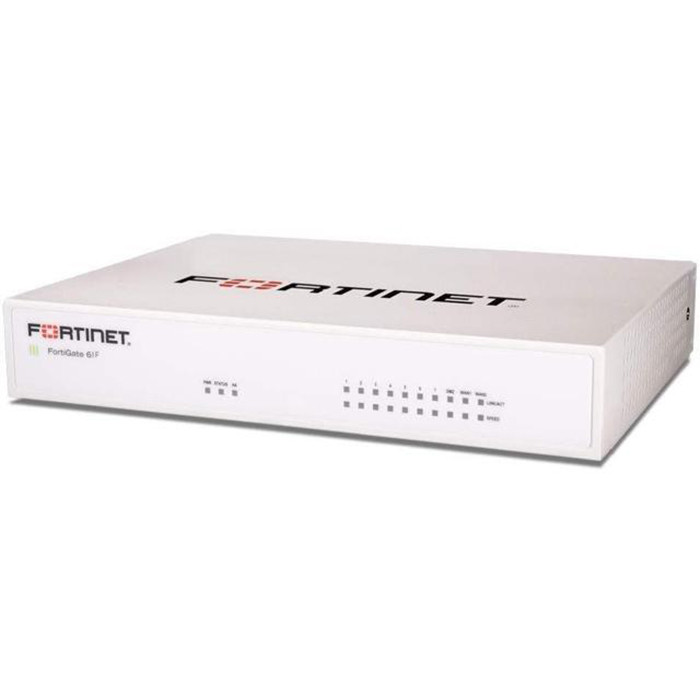

Комплект безопасности: межсетевой экран FortiGate-61F + 3 года подписки 24x7 FortiCare и FortiGuard Enterprise Protection. Старый артикул: FG-61F-BDL-980-36.
Комплекты межсетевых экранов FortiGate для малого бизнеса (FG 30-90) с пакетом безопасности Enterprise Bundle и подпиской Forticare (на выбор 8/5 или 24/7) на один, три или пять лет. Пакет безопасности Enterprise Bundle позволяет расширить функции безопасности межсетевого экрана FortiGate. Что входит в состав Enterprise Bundle, читайте в описании категории по ссылке.
Характеристики
Hardware Specifications | FORTIGATE 61F |
GE RJ45 WAN / DMZ Ports | 2 / 1 |
GE RJ45 Internal Ports | 5 |
GE RJ45 FortiLink Ports | 2 |
GE RJ45 PoE/+ Ports | – |
Wireless Interface | – |
USB Ports | 1 |
Console (RJ45) | 1 |
Internal Storage | 1x 128 GB SSD |
System Performance — Enterprise Traffic Mix | |
IPS Throughput | 1.4 Gbps |
NGFW Throughput | 1 Gbps |
Threat Protection Throughput | 700 Mbps |
System Performance | |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
Firewall Latency (64 byte UDP packets) | 4 ?s |
Firewall Throughput (Packets Per Second) | 9 Mpps |
Concurrent Sessions (TCP) | 700,000 |
New Sessions/Second (TCP) | 35,000 |
Firewall Policies | 5,000 |
IPsec VPN Throughput (512 byte) | 6.5 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 500 |
SSL-VPN Throughput | 900 Mbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
SSL Inspection Throughput (IPS, avg. HTTPS) | 750 Mbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 400 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
Application Control Throughput (HTTP 64K) | 1.8 Gbps |
CAPWAP Throughput (HTTP 64K) | 1.5 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 16 |
Dimensions | |
Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
Height x Width x Length (mm) | 38 x 216 x 160 |
Weight | 1.9 lbs (0.9 kg) |
Form Factor | Desktop |
Operating Environment and Certifications | |
Power Required | INPUT: 12VDC (powered by External DC Power Adapter, 100–240V AC, 50–60 Hz) |
Maximum Current | 115V AC / 0.7 A, 230V AC / 0.48 A |
Total Available PoE Power Budget | N/A |
Power Consumption (Average / Maximum) | 17.2 W / 18.7 W |
Heat Dissipation | 63.8 BTU/hr |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity | 10–90% non-condensing |
Noise Level | Fanless 0 dBA |
Operating Altitude | Up to 7,400 ft (2,250 m) |
Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Информация для заказа
- Цена: 1 928 460 ₸
