![Модуль супервизора Cisco [VS-S720-10G-3CXL=]](https://images.satu.kz/155802093_modul-supervizora-cisco.jpg)

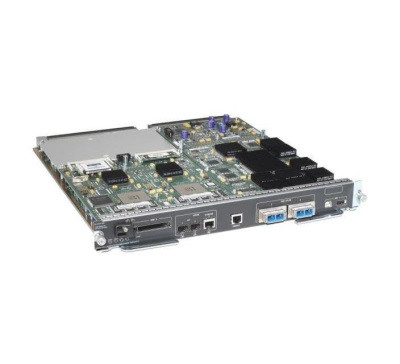

Модуль супервизора Cisco [VS-S720-10G-3CXL=]
12 937 680 ₸
- В наличии
- Код: ct94996
![Модуль супервизора Cisco [VS-S720-10G-3CXL=]](https://images.satu.kz/155802093_w640_h640_modul-supervizora-cisco.jpg)
Модуль супервизора Cisco [VS-S720-10G-3CXL=]В наличии
12 937 680 ₸
Законом не предусмотрен возврат и обмен данного товара надлежащего качества
Характеристики
| Основные | |
|---|---|
| Производитель | Cisco Systems |
Управляющий модуль для Cisco Catalyst 6500/6500-E/7600 Series, 2 порта 10G X2, 1SFP+1SFP/Copper порты, PFC3C XL
Системные модули Cisco, называемые супервизорами. Системный модуль является обязательным компонентом любого коммутатора Catalyst.
Характеристики
| General | |
|---|---|
| Device Type | Control processor |
| Approximate Width | 14.9 in |
| Approximate Depth | 15.9 in |
| Approximate Height | 1.6 in |
| Approximate Weight | 11.5 lbs |
| Processor / Memory / Storage | |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Networking | |
| Form Factor | Plug-in module |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Switching Protocol | Ethernet |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, HSRP, IGMP, VRRP, PIM-SM, PIM-DM, GRE, Bidirectional PIM |
| Performance | IPv4 routing : 450 MbpsIPv6 routing : 225 Mbps |
| Capacity | MAC addresses : 96000IPv4 routes : 1000000IPv6 routes : 500000NetFlow entries : 256000 |
| Status Indicators | Port status, power, link OK, system, active |
| Features | NAT support, MPLS support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN |
| Compliant Standards | IEEE 802.1x |
| Communications | |
| Supported Flash Memory Cards | CompactFlash Card |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SFP (mini-GBIC)2 (total) / 2 (free) x X2 |
| Interfaces | 1 x 1000Base-T - RJ-451 x management - RJ-451 x USB - Type A1 x USB - Type B |
| Compatible Slots | 1 x expansion slot |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Compatibility Information | |
| Designed For | Cisco 7603, 7603-S, 7606, 7606 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613, 7613 Security Bundle, OSR-7609Cisco Catalyst 6503, 6503 Firewall Security System, 6503 VPN System, 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506, 6506 chassis, 6506 Firewall Security System, 6506 Firewall Security System with Enhanced Chassis, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509, 6509 chassis, 6509 Firewall and IDS Security System, 6509 Firewall and VPN Security System, 6509 Wiring Closet Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with WiSM Bundle, 6509-NEB, 6509-NEB-A, 6513, 6513 10Gig Firewall Security System Bundle, 6513 chassis, 6513 Chassis with Supervisor Engine 32, 6513 Firewall Security System, 6513 IPSec VPN SPA Security System |
Информация для заказа
- Цена: 12 937 680 ₸
