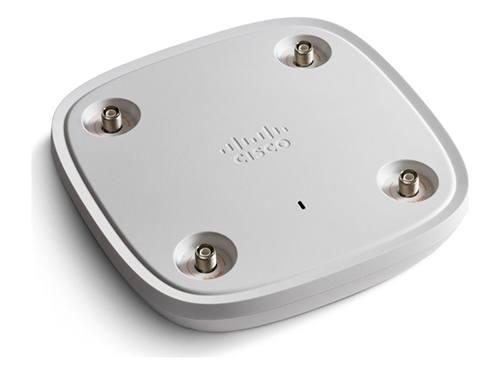

Точка доступа Cisco Catalyst, 802.11ax, внешние антенны [C9120AXE-E]

Точка доступа Cisco Catalyst, 802.11ax, внешние антенны [C9120AXE-E]

468 240

  • В наличии
  • Код: ct143460
Точка доступа Cisco Catalyst, 802.11ax, внешние антенны [C9120AXE-E]
Точка доступа Cisco Catalyst, 802.11ax, внешние антенны [C9120AXE-E]В наличии
468 240
+7 (747) 095-79-79
Отдел продаж
  • +7 (771) 557-53-51
+7 (747) 095-79-79
Отдел продаж
  • +7 (771) 557-53-51
Законом не предусмотрен возврат и обмен данного товара надлежащего качества
Характеристики
Основные
ПроизводительCisco Systems
Интерфейс подключения к интернет (WAN)Ethernet

Точка доступа Cisco Catalyst 9120AX с поддержкой Wi-Fi 6, внешние антенны; 4x4:4 MIMO, E Domain.


Точки доступа Catalyst 9100, обеспечивающие скорости стандарта Wi-Fi 6 (802.11ax), являются отказоустойчивыми и интеллектуальными устройствами с интегрированной защитой для мобильных клиентов и устройств IoT.


Характеристики

Software

Cisco Unified Wireless Network Software Release 8.9.x or later

Cisco IOS ® XE Software Release 16.11 with AP Device Pack, or later

Supported wireless LAN controllers

Cisco Catalyst 9800 Series Wireless Controllers

Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller

802.11n version 2.0 (and related) capabilities

4x4 MIMO with four spatial streams

Maximal Ratio Combining (MRC)

802.11n and 802.11a/g beamforming

20- and 40-MHz channels

PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)

Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

802.11 Dynamic Frequency Selection (DFS)

Cyclic Shift Diversity (CSD) support

802.11ac

4x4 downlink MU-MIMO with four spatial streams

MRC

802.11ac beamforming

20-, 40-, 80-, and 160-MHz channels

PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)

Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

802.11 DFS

CSD support

802.11ax

4x4 downlink MU-MIMO with four spatial streams

Uplink/downlink OFDMA

TWT

BSS coloring

MRC

802.11ax beamforming

20-, 40-, 80-, and 160-MHz channels

PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)

Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

802.11 DFS

CSD support

Integrated antenna

Flexible radio (either on 2.4GHz or on 5GHz)

2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth

Dedicated 5GHz radio

5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

External antenna (sold separately)

Cisco Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

Cisco Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna

Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Supports Self-Identifiable Antennas (SIA) on one RP-TNC port

Smart Antenna Connector

Available on the 9120E and on the 9120P only

Compact multi RF connector with DART interface

Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector

Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio

Interfaces

1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

Management console port (RJ-45)

USB 2.0 @ 3.75W (enabled via future software)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions (W x L x H)

Access point (without mounting brackets): C9120I: 8.5 x 8.5 x 1.7” (21.6 x 21.6 x 4.3 cm)

Input power requirements

802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)

Cisco power injector, AIR-PWRINJ6=

802.3af PoE

Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

Environmental

Cisco Catalyst 9120AXI

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

Nonoperating (storage) altitude test: 25?C, 15,000 ft.

Operating temperature: 32° to 122°F (0° to 50°C)

Operating humidity: 10% to 90% (noncondensing)

Operating altitude test: 40?C, 9843 ft.

System memory

2048 MB DRAM

1024 MB flash

Available transmit power settings

2.4 GHz

23 dBm (200 mW)

20 dBm (100 mW)

17 dBm (50 mW)

14 dBm (25 mW)

11 dBm (12.5 mW)

8 dBm (6.25 mW)

5 dBm (3.13 mW)

2 dBm (1.56 mW)

-1dBm (0.79mW)

-4dBm(0.39mW)

5 GHz

26 dBm (400 mW)

23 dBm (200 mW)

20 dBm (100 mW)

17 dBm (50 mW)

14 dBm (25 mW)

11 dBm (12.5 mW)

8 dBm (6.25 mW)

5 dBm (3.13 mW)

2 dBm (1.56 mW)

-1dBm (0.79mW)

Frequency band and 20-MHz operating channels

E (E regulatory domain):

2.412 to 2.472 GHz; 13 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)

Информация для заказа
  • Цена: 468 240
